ob1 V3.0 Professional LED System

Product Description
$44.99 AUD
Maximum quantity available reached.

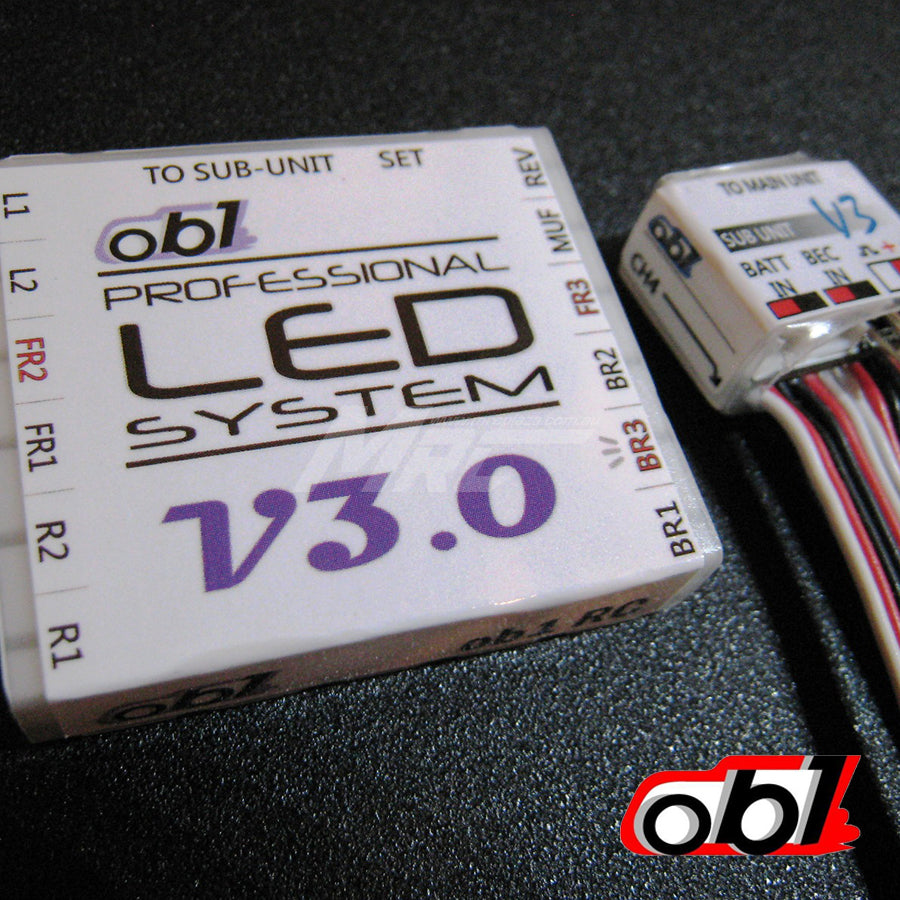

ob1 V3.0 Professional LED System

Feature:

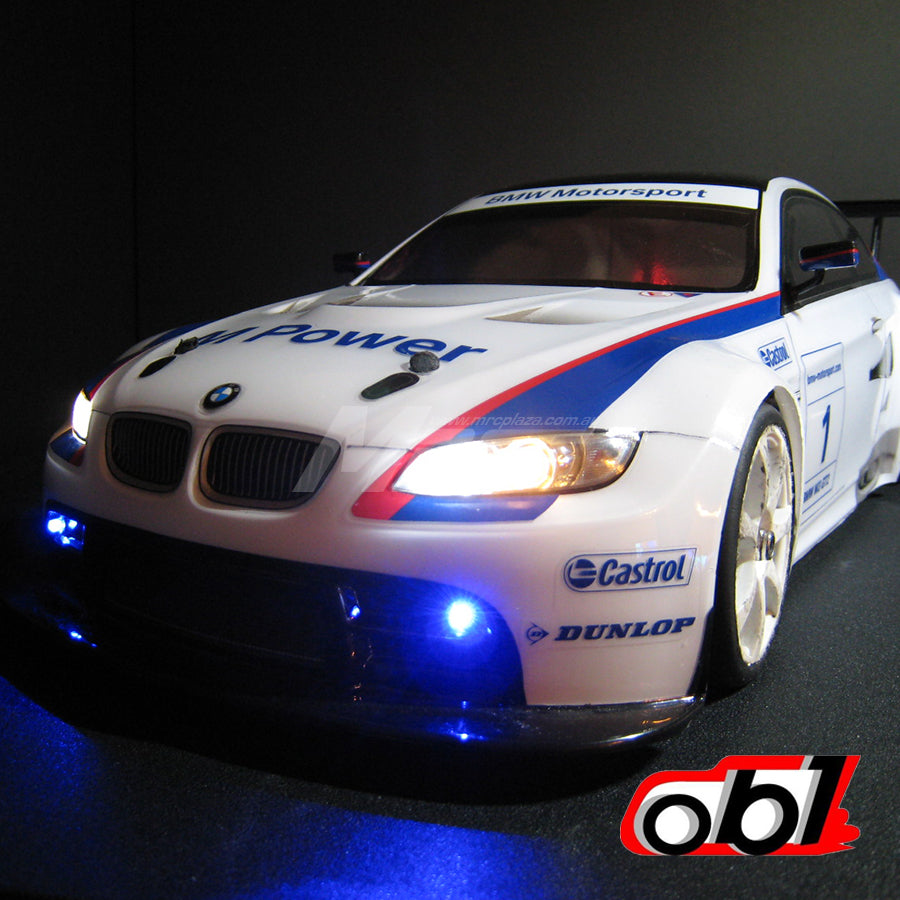

  • For: 1:10 RC drifting and touring cars
  • Low Voltage Detection (LVD), Buzzer uses as audible alarm
  • Flash mode (All LED), Press SET switch anytime (or use CH3) after power on to change total 7 flashing styles
  • BR3, FR2, 3 connectors have 4 Power Options (Low/ Mid/ High / Extra High)
  • 1 connector can drive Max. 16 LED (20mA type)
  • FR1-3 (Front lamp) / BR1-3 (Brake lamp) / L1-2, R1-2 (Left & Right signals) / MUF (Muffler lamp) / REV (Reverse lamp)
  • 1-4 Channels input;
  • Auto-calibration on every power on >> Plug&Play !!
  • Main / Sub Unit design, uses 1 cable to connect each others
  • Support virtually all RC systems in market
  • High Response 2.4G System, PCM / PPM (FM), AM
  • Powered by BEC of RC system, no external power required
  • However if HIGH / EX-HIGH Power option used, external BEC is required
Function:

CH1 - Steering

  • Left / Right winker lamp

CH2 - Throttle

  • 2-level brightness brake lamp
  • Auto hazard lamp
  • Reverse lamp
  • Muffler lamp
  • Toggle function (Hold full brake for 3 sec. to change LED status, total 4 steps !)

CH3 - ON/ OFF

  • Flash mode Toggle or
  • Front lamps On/ Off

CH4 - ON/ OFF

  • Manual hazard
  • Front / Muffler / REV lamps On/ Off
Specification:
  • Input Voltage: 5-6VDC (Powered by BEC), absolute Max. 9V
  • Low Voltage Detection battery type: 1-6S LiPo / LiFePo (User define Max. 25.2V)
  • Support RC Modulation: High Response 2.4G system / PCM / PPM (FM) / AM
  • Dimension (Main unit): 44mm (L), 38mm (W), 10mm (H)
  • Dimension (Sub unit): 22mm (L), 22mm (W), 10mm (H)
  • Weight: Main unit 12g / Sub unit 10g (Not includes cables)
What is included:
  • Main unit (1 pc)
  • Sub Unit (1 pc)
  • Main cable (1 pc)
  • SET switch cable (1 pc)
  • Front LED cable (5mm Ultra high brightness WHITE LED x 2) (1 pc)
  • Brake LED cable (5mm Ultra high brightness RED LED x 2) (1 pc)
  • Left / Right LED cable (3mm high brightness YELLOW LED x 2) (2 pcs)
  • 2S battery cable (1 pc)
  • User Manual (English) (1 pc)
Manual:
Sku: BL-V30
Vendor: ob1
