OMG H2-MI-CF55Q Helicopter Tail Mini Servo

Product Description
$119.99 AUD

or make 4 interest-free payments of $30.00 AUD fortnightly with More info

Maximum quantity available reached.

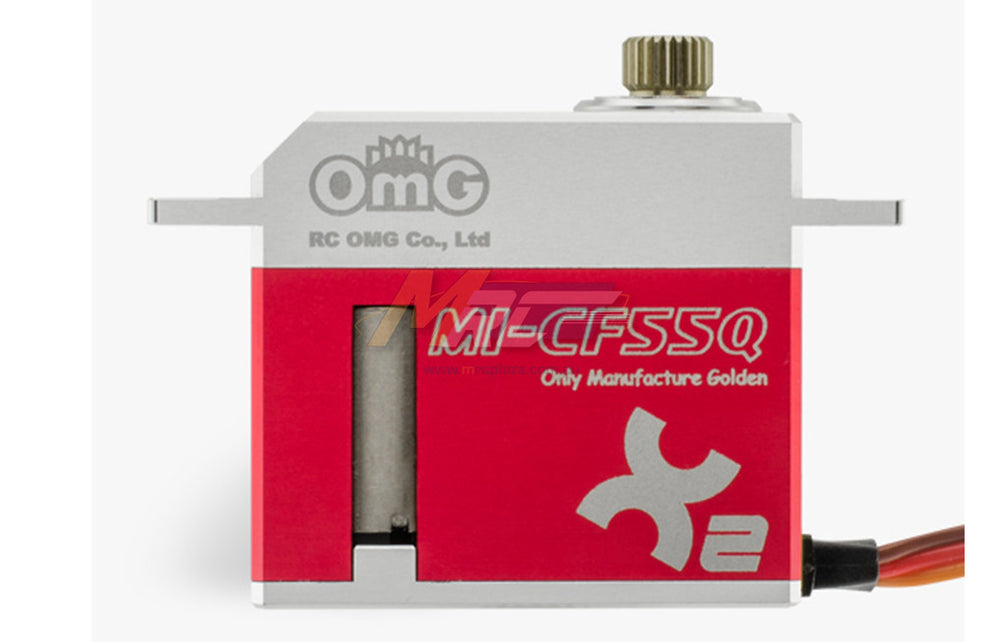

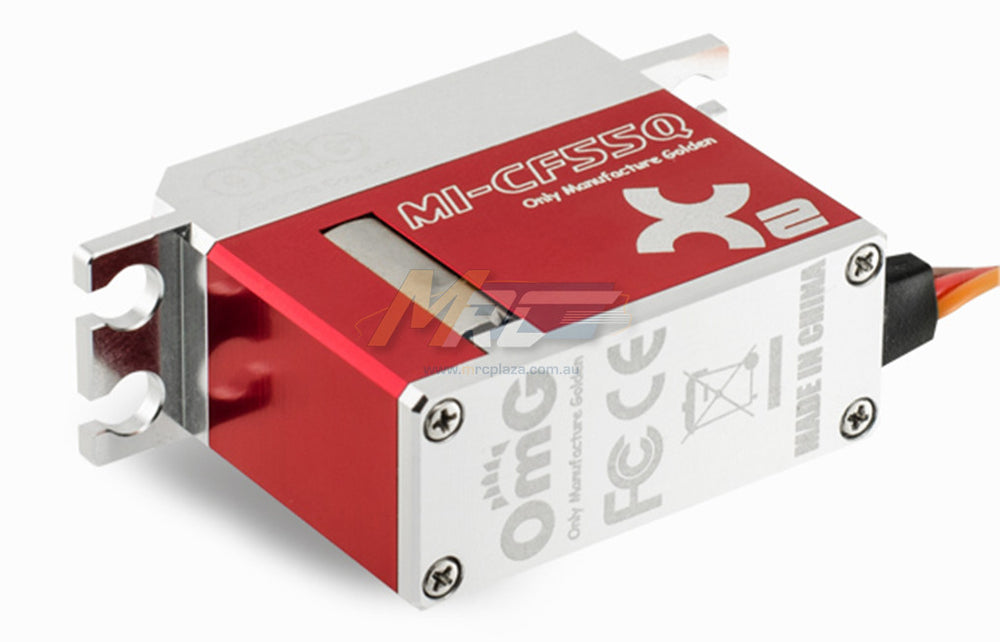

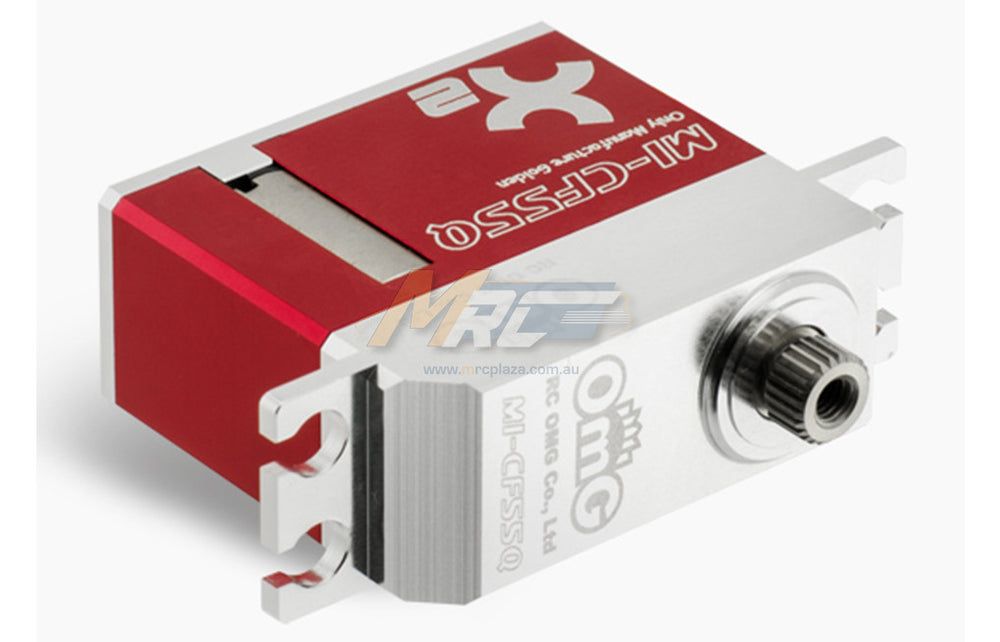

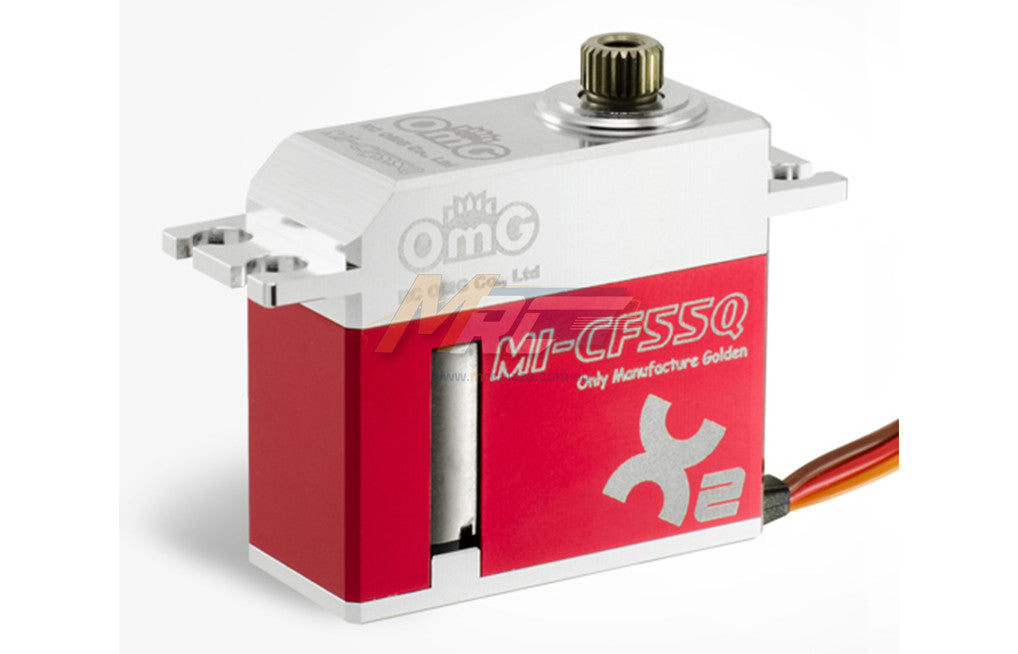

OMG H2-MI-CF55Q Class 500 Helicopter Tail Mini Servo

Feature:
  • Specially designed to operate your class 500 helicopter tail and make it locked in and consistent
  • Reinforced titanium gears to ensure a low maintenance experience and resistance during crashes
  • Capable of running on voltages up to 8.4V
  • Quiet, fast, precise, durable and has minimal power consumption
  • Gears are titanium coated specially for superior endurance and durability
Specification:
  • Type: Digital
  • Operating Voltage Range: 6.0 - 8.4Volts DC
  • Bearing Type: Dual Ball Bearings
  • Speed (s/60°@6.0V/7.4V/8.4V): 0.065 / 0.06 / 0.05
  • Torque oz./in. (6.0V/7.4V/8.4V): 56 / 70 / 76
  • Torque kg./cm. (6.0V/7.4V/8.4V): 4 / 5 / 5.5
  • Size : 36 x 15.2 x 28.8mm
  • Weight: 35g
  • Motor Type: Coreless motor
  • Control System: +Pulse Width Control 1500µsec Neutral
  • Required Pulse: 3-5 Volt Peak to Peak Square Wave
  • Operating Temperature Range(℃): -10° - 50°
  • Idle Current (@6.0V/7.4V/8.4V): 20mA
  • No Load Running Current (6.0V/7.4V/8.4V): 80mA/100mA
  • Stall Current (6.0V/7.4V/8.4V): 1600mA/2400mA
  • Dead Band Width: 4µs
  • Potentiometer Type: Rotating(Max.220°)
  • Connector Wire Length: 11.8 in. / 300 mm. OMG wire
  • Connector Wire Gauge: 25 AWG
  • Connector Type: JR
  • Gear Type: Titanium gears
  • Frequency: 330Hz
  • Shaft: 5.9mm 25T
What is included:

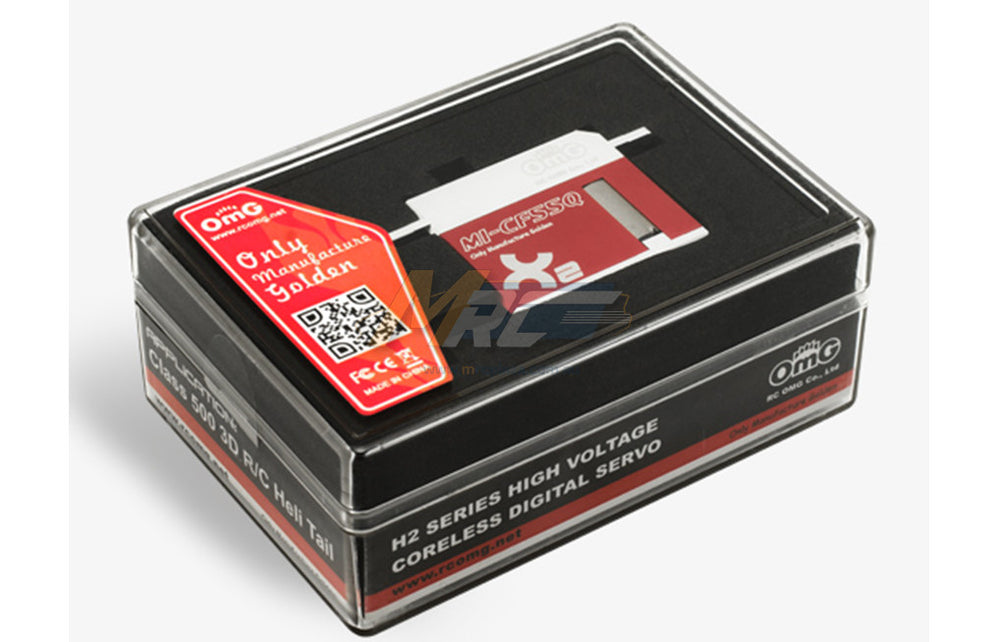

  • OMG H2-MI-CF55Q Class 500 Helicopter Tail Mini Servo (1 pc)
Sku: H2-MI-CF55Q
Vendor: OMG
