Yokomo Alum. Adjustable Rear H Arm Kit

Yokomo Alum. Adjustable Rear H Arm Kit 0

Followed by the Y2-RAC A-arm special suspension kit and Y2-415SA Front SP Steering Block, Yokomo announced the new items today and they are part of the Yokomo Professional Setting Kit series.

Introducing Y2-008RA the Aluminum Adjustable Rear H Arm Kit for both YD-2 and YD-4 chassis. This all new rear H arm has made by aluminum with Yokomo's original high precision processing to enable the driver to make an adjustment for chassis tread for finding out the best chassis balance and also suites for the variety of car bodies width as well.

Adjustable length for each side will be -2.0mm without any spacers, up to 1.5mm by adding 3 spacers 0.5, 1.0, and 2.0mm as standard bundled with the kit.

Th maximum length will be 6.0 to 7.0mm to keep the certain level of high rigidity in use. Additional of longer universal dog bones may be required.

As its simple to remove the spacers, this new H-arm kit provides you the ease on tweaking your chassis even while you are in a RC drift competition.

Pre-orders are now open, ETA arrival will be early August 2017.

Product Details

Y2-008R Alum. Adjustable Rear H-Arm Kit for YD-2/YD-4

0.5/1.0/2.0mm spacers are included 2 pieces in each size

Spare Parts

Y2-008RA1 Adjustable Rear H-Arm A (Left)

Y2-008RA2 Adjustable Rear H-Arm A (Right)

Y2-008RA3 Adjustable Rear H-Arm B (Left)

Y2-008RA4 Adjustable Rear H-Arm B (Right)

Y2-008RA5 Adjustable rear H arm adjust shim (0.5mm/2pcs)

Y2-008RA6 Adjustable rear H arm adjust shim (1.0mm/2pcs)

Y2-008RA7 Adjustable rear H arm adjust shim (2.0mm/2pcs)

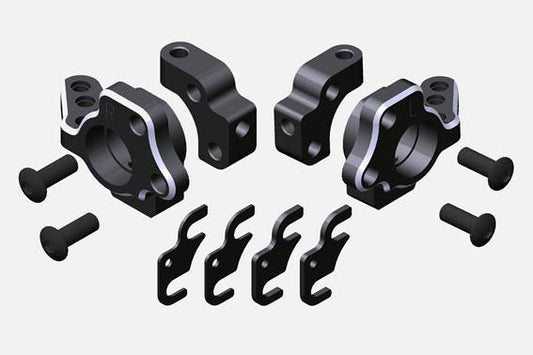

Yokomo Front SP Steering Block

Yokomo Front SP Steering Block 0

Yokomo has started to releasing Yokomo Professional Setting Kit series from May 2017. As the second release we introducing you the Yokomo Front SP Steering Block with adjustable king-pin angle ability and it will be released in the end of June this year.

This new steering block will give your YD-2/Plus/EX the ability to adjust kingpin steering angle by the separated block design with 0.5mm or 1.0mm spacers. The neutral angle is +1 degree, by adding 0.5mm spacer the kingpin angle will be increased by 1 degree more.

The optional aluminum stopper pin will keep the exact position in maximum angle and prevent from the reverse joint at steering tie rod for more smooth and consistent drifting action.

Product Details

Y2-415SA Front SP Steering Block

Parts for Y2-415SA

Y2-415SA1 Steering Block Base (R/L)

Y2-415SA2 Steering Block Adapter (1 pc)

Y2-415SA6 Steering Block Spacer (0.5mm 2pcs)

Y2-415SA7 Steering Block Spacer (1.0mm 2pcs)

Optional Parts for Y2-415SA

Y2-415SA3 Steering Block Weight Set (R/L 1pc each)

Y2-415SA4 Steering Block Stopper Pin (4mm diameter 2pcs)

Y2-415SA5 Steering Block Stopper Pin (5mm diameter 2pcs)

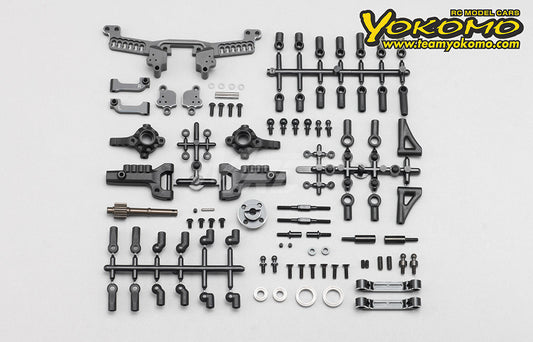

Yokomo A-arm Special Suspension Kit

Yokomo A-arm Special Suspension Kit 0

Yokomo will be starting to release Yokomo Professional Setting Kit series from the end of May 2017. As the first release, we introducing you Yokomo A-arm Special Suspension Kit.

This suspension kit will convert your YD-2 with A-arm setup in the rear section. The kit consist of Alum. shock tower, upper arm holder, Alum. upper A-arm that makes your YD-2 more rigid and more variable setting including toe control.

By adapting this professional kit, you will be able to enjoy the freedom and variety of setting on rear suspension of your YD-2.

Please note, according to the info from Yokomo this professional setting kit is required proper skill and knowledge to find the best setting.

Product Detail

Y2-RAC A-arm Special Suspension Kit

Assembled Samples

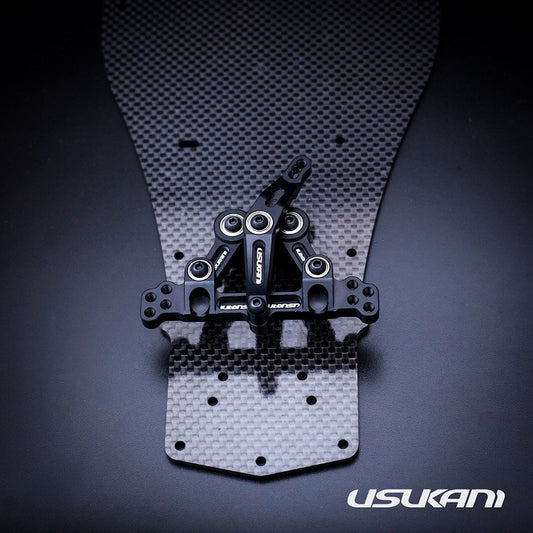

Usukani Balance Design AL Steering Set For YD-2

Usukani Balance Design AL Steering Set For YD-2 0

Latest product from Usukani, 5:5 Balance Design AL Steering Set for Yokomo YD-2. Coming to Australia soon!
